Everything You Need To Know About a PET Plastic Crusher

Understanding the PET plastic crushing crusher is important for handling trash and getting materials back when you are in charge of plastic recycling operations or factories. A PET plastic crushing crusher is a special kind of machine that turns polyethylene terephthalate bottles, cases, and production waste into regular, usable pieces that can be reused. These tools are very important for collecting trash and turning it back into something new. They cut down on volume by up to 70% and get plastic ready to be washed, pelletized, and then used again in manufacturing processes.

Understanding PET Plastic Crushers and Their Working Principles

To recycle plastic effectively, you need to understand how these tools turn big trash into useful materials.

Core Components and Functionality

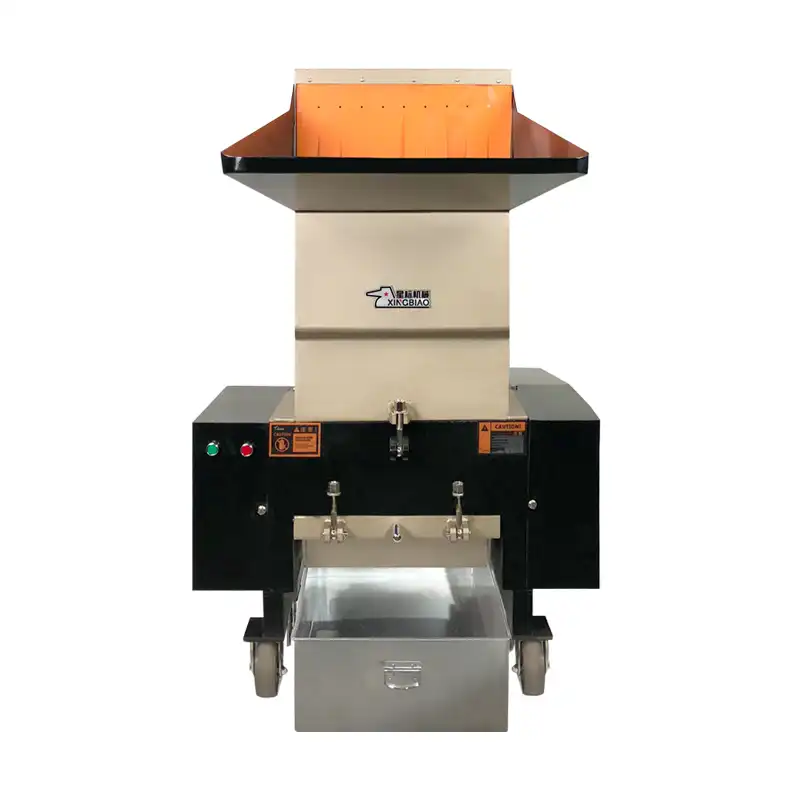

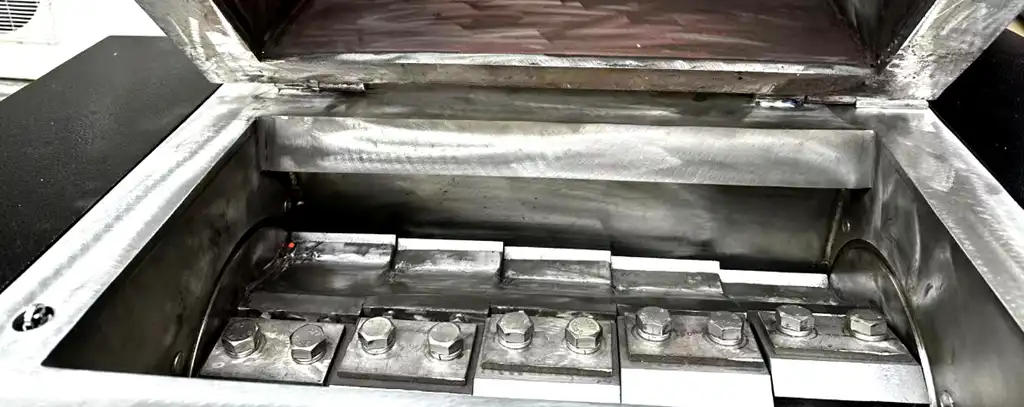

A PET plastic crusher is made up of several combined parts that work together. The main action takes place in the crushing room, where high-speed rotors with sharpened steel blades on them cut through plastics. When you buy a crusher from Xingbiao, the blades are made from SKD-11 and D2 mold steel. These steels are vacuum-heated and frozen to make them very hard. When these blades cut against fixed counter-knives, they make a cutting action that is like scissors and makes particles of the same size.

Driving force comes from the motor, which can have power levels from 5 HP to 150 HP, based on the size of the machine. The improved motor matching in our design uses about 15% less energy than traditional designs. The discharge system has screens or mesh holes that can be changed so that workers can change the size of the output particles from 8 mm to 50 mm. This adaptability is very helpful when getting things ready for different processes that come after.

Types of PET Crushing Systems

Single-shaft PET plastic crushing crushers are great for breaking down hard PET bottles and cases with thick walls. Their strong rotor and aggressive blade design create a lot of power, which lets them work with hard metals without much chance of getting stuck. This design is often chosen by factories that make injection-molded parts to crush discarded parts and runners.

When it comes to mixed PET trash streams, double-shaft PET plastic crushing crushers are very useful. Because it has two rotors, it can pull both hard bottles and flexible PET films without having to do a lot of prep work first. Recycling centers that deal with a wide range of city trash like this flexibility because it cuts down on the need for sorting by hand.

Heavy-duty PET plastic crushing crushers made for high-volume use have frames that are strengthened with high-strength steel plates that are bonded together. We use a stress relief process at Xingbiao to make sure that these structures keep their shape even after years of heavy loads and continued use.

The Crushing Process Step-by-Step

The material goes into the breaking chamber through a hopper on top. Gravity and feed rollers make sure the flow is steady. When the rotating blades hit the plastic, they create shear forces that break the material into smaller and smaller pieces. Blade speed, which is usually between 400 and 600 RPM, has a direct effect on particle consistency and output rates.

As the pieces get smaller, they go through the screen mesh at the bottom of the room and out into storage bins or conveyors. Pieces that are too big stay in the box for more processing rounds. This constant operation keeps the output steady and stops too many fines from building up, which would make the washing and extrusion processes further downstream more difficult.

Key Benefits and Performance Factors of PET Plastic Crushers

By buying good PET plastic crushing crushers, you can see real benefits in many areas of your business.

Recycling Efficiency and Material Recovery

Less volume is the most obvious gain right away. Crushed PET takes up 60–70% less room than whole bottles, which makes storage and shipping much cheaper. A medium-sized recycling center that processes 5 tons of trash every day can cut the size of its building by several thousand square feet by crushing the trash well.

When crushers have good dust extraction methods, the quality of the material gets better. Our machines have built-in collection ports that can connect to industrial vacuums. These ports collect flying particles and keep work areas nearby from getting dirty. This care for cleaning is especially helpful for places that recycle PET for use in food-grade products, which have to meet strict purity standards.

Energy Efficiency and Operational Costs

Over the 10 to 15 years that a PET plastic crushing crusher is in use, its revenue is directly affected by how well its motors work. We've cut energy use by more than 20% by improving the shape and form of the cavities in the blades so that there is less resistance during cutting processes. When compared to less efficient models, a 50 HP breaker that works 16 hours a day can save about $3,200 a year on power costs.

Feed rate adjustment improves energy output even more. When the grinding chamber is overloaded, the motor has to work against too much resistance, which increases the power draw and speeds up blade wear. Our engineering team creates feeding rules that are unique to each type of crusher. This helps operators keep their machines in the "sweet spot" where throughput and efficiency are at their best.

Safety Protocols and Noise Management

Modern PET breaking plants have to find a balance between worker health and efficiency. Safety interlocks keep people from getting into the chamber while it's running, and emergency stop buttons placed around the machine make it easy to turn it off quickly. Our basic crushers have clear polycarbonate windows for viewing, so you can keep an eye on things without putting the operator at risk.

Noise levels in crushing plants are usually between 75 and 90 decibels, which means that hearing protection is needed in many places. Sound-dampening walls and isolation mounts can cut background noise by 10 to 15 decibels if they are placed correctly. Putting crushers on pads that absorb shaking not only cuts down on noise, but it also increases the life of the bearings by lowering the stress on the structure.

Durability and Maintenance Requirements

How long a blade lasts is an important factor in how durable it is. Our Cr12MoV special steel blades keep cutting well for 800 to 1200 hours before they need to be sharpened or replaced. This is a lot longer than normal tool steel blades. This longer service interval means less downtime and lower costs for repair workers.

Regularly greasing bearings keeps them from breaking down too soon, which can stop activities for days. We suggest checking the temperatures of the bearings once a week during the first few weeks of operation and then once a month once normal patterns are set. Temperature rises that don't seem normal are often a sign of lube failure or contamination, which lets preventative action be taken before a major failure happens.

The quick-change screen system built into Xingbiao crushers is a great example of a design that makes it easy to keep up. Operators can quickly change screens for different types of materials or particle sizes because they can do it without any special tools and in less than 20 minutes. This modularity is very helpful for sites that deal with different types of trash during different stages of production.

Comparing PET Plastic Crushers – How to Choose the Right Machine

To choose the right PET plastic crushing crusher, you need to carefully look at your business goals and working factors.

Capacity Considerations and Material Types

Processing power needs to match both current amounts and expected growth. A small recycling center that deals with 500 kg of PET bottles every day might start with a normal 15 HP crusher, but a big center that handles 10 tons needs a 75 HP or bigger crusher. When capacity is too low, it causes bottlenecks that annoy workers and slow down production. When capacity is too high, it wastes money and energy.

The properties of the material have a big impact on the choice of PET plastic crushing crusher. For food and drink containers with thick walls made of PET, the blades need to be set up in a more active way than for makeup bottles with thin walls. Post-industrial waste, like injection molding sprues and edge trim, is usually cleaner and more regular than post-consumer waste. This makes it possible to handle it more quickly. We help our customers figure out the best crusher specifications for their trash by evaluating the materials they send us.

Electric Versus Hydraulic Crusher Systems

Electric PET plastic crushing crushers are the most popular because they are easy to use and don't need as much upkeep. Direct motor drive gives these units steady performance with little complexity. This makes them perfect for places where uptime and simplicity are important. They work best in places where they can handle things that are mostly the same at the same rate.

Even though they aren't used as often for PET, hydraulic PET plastic crushing crushers are better for dealing with polluted or highly variable trash streams. Their twisting properties make them less likely to get stuck when metal contaminants or chunks that are too big get in the way. Because they are more complicated and need more upkeep, hydraulic types are usually only used in specific situations where their unique benefits make the extra cost worth it.

Evaluating Price and Performance Trade-offs

Entry-level PET plastic crushing crushers that are good for small businesses start at around $3,000 to $8,000 and have basic features that are good enough for low throughput needs. Mid-range industrial models for medium-sized recyclers usually range in price from $12,000 to $35,000. These models have features that make them last longer and hold more. Heavy-duty units designed for ongoing large-scale use can cost more than $50,000, but they last a long time and work well.

Instead of just looking at the buy price, procurement managers should figure out the total cost of ownership when comparing choices. A crusher with blades that need to be replaced every 300 hours will cost a lot more in the long run than a high-end model with blades that last 1000 hours, even if the higher starting cost is only 30%. In the same way, differences in energy use add up over time, which could make up for higher prices by lowering electricity bills.

Selecting Reliable Equipment Suppliers

A supplier's name and help after the sale are often more important than small differences in specifications. Hangzhou Xingbiao Machinery has been developing and making PET plastic crushing crushers entirely for 30 years, giving us a level of skill that other companies can't match. The fact that we work with big companies like Nongfu Spring and KFC shows that we can meet strict industry standards.

Warranty coverage shows how confident the maker is. We back up our full warranties with promises to respond quickly—inquiries are answered within 24 hours, and our expert support includes help with installation, training for operators, and regular follow-up visits. If spare parts are easy to get, there will be little downtime when repair needs to be done. This is especially important in industries where broken crushers stop whole production lines.

Procurement Guidance for PET Plastic Crushers

Getting the best PET plastic crushing crusher at the best price is possible if you know how to navigate the buying process well.

Price Ranges and Specifications

The price of a new PET plastic crushing crusher is closely linked to its size and the quality of its build. Basic models that can handle 100 to 300 kg/h cost around $5,000 to $15,000, and units that can handle 500 to 800 kg/h cost around $18,000 to $40,000. Industrial crushers with a capacity of more than 1500 kg/hour can cost between $60,000 and $100,000, which shows how well-built they are and how long they can be used.

Used tools can save you 30 to 50 percent, but you need to be very careful when choosing it. Reliable sellers show proof of how the item was rebuilt, what new parts were used, and how much guarantee coverage is still left. We sometimes have factory-refurbished units for sale that have been totally dismantled, inspected, and put back together according to the original specs. These units work reliably and are sold at lower prices.

Contacting Suppliers and Evaluating Options

Online tools make it easier to do preliminary research and compare prices, but talking to someone in person brings to light important details that aren't on specification sheets. Get specific about your business before you contact potential providers. Know what kinds of materials you use, how much you produce every day, how much floor space you have, and how your power supply works. This lets you make specific suggestions instead of giving general answers.

Ask for video examples of the PET plastic crushing crusher working with materials that are similar to the ones you're throwing away. Images and specs that don't change only tell part of the story. Watching how it works in real life shows feeding behavior, noise levels, and output accuracy. We keep a large movie library with clips of our crushers working with different types of PET, such as thin-walled bottles and thick container caps.

Warranty Terms and Service Agreements

Standard guarantees usually cover problems with the way the product was made for 12 to 24 months, but the details vary a lot. Some sellers don't cover wear items like blades and screens, while full coverage covers all parts except those that are clearly damaged by abuse. At Xingbiao, our guarantee covers the whole machine, including the first sets of blades. This gives you real peace of mind during the important break-in time.

The level of after-sales service is what sets great providers apart from average ones. Set clear goals for how quickly technical questions will be answered, how readily new parts will be available, and how emergency help will be provided. We keep a large stock of spare parts at our plant, so we can send common parts the same day and deliver specialty items in 48 hours.

Negotiating Volume Purchases and Customization

Volume prices can help facilities that need more than one PET plastic crushing crusher or are looking to grow in stages. When you buy three or more identical units, you can usually get a 10–15% discount. If you need tools on a regular basis, you can get even better terms by signing a long-term supply deal. When you negotiate these kinds of deals, it's best to see them as relationships instead of competition. Suppliers who know how your business is growing can offer solutions that will help you reach your goals.

Customization takes into account specific operating needs that standard models can't meet. We often change the sizes of the hoppers to work with certain conveyor systems, the specs of the motors to work with odd power supplies, and the designs of blades to fit difficult materials. These changes usually add 15 to 25 percent to the base price, but they get rid of the problems that come with using standard equipment in situations where it doesn't work.

Conclusion

Choosing and using the right PET plastic crushing crusher has a big effect on how well recycling works, how much it costs, and the quality of the material that is recovered. Knowing the different kinds of crushers, how they work, and how often they need to be serviced lets you make smart choices that match the equipment's abilities with the needs of your business. Durable construction with high-quality materials like SKD-11 steel blades guarantees a long service life, and energy-efficient designs lower operating costs over the equipment's useful life. You can protect your investment and ensure long-term operating success in the recycling industry by carefully evaluating suppliers based on their technical knowledge, service commitment, and experience.

FAQ

How often should I perform maintenance on my PET plastic crusher?

Every day, maintenance tasks include checking safety devices and listening for strange noises or movements while the PET plastic crusher is running. As part of weekly chores, it is necessary to make sure that bearing temperatures stay within standard ranges and that they are properly oiled. As part of the machine's monthly care, the blades should be checked for signs of wear, the bolts should be tightened, and the screen should be checked for damage. Depending on the material and how hard it is used, blades usually need to be sharpened or replaced every 800 to 1200 hours of operation. Setting up a written repair plan keeps equipment from breaking down when it's least expected and greatly increases its useful life.

What crusher capacity matches my recycling volume?

Figure out how many kilograms of material you need to process each day, and then choose a PET plastic crushing crusher that can handle 120 to 150% of that capacity to keep working efficiently even if the number changes. A plant that processes 2,000 kg of material every day over an 8-hour shift needs about 250 kg of throughput per hour. This means that a crusher rated for 300–375 kg per hour has the right capacity and working space. Undersized equipment has to work at full capacity all the time, which speeds up wear and increases the chance of failure. On the other hand, light overcapacity equipment is reliable and flexible.

Can PET crushers process other plastic materials effectively?

Some good PET plastic crushers can also break down rigid plastics like HDPE, PP, and PVC cases with similar results. More than polymer type, material strength and thickness affect how well it can be processed. To keep soft materials like LDPE film and woven bags from wrapping around the rotor shaft, the blades need to be set up in a certain way. Our regular line of crushers includes models that are especially made for working with film and fiber materials. These models have design changes that make them easier to handle while still meeting the core standards for durability and performance.

Partner with Xingbiao for Your PET Plastic Crushing Crusher Needs

Every PET plastic crushing crusher that Xingbiao makes is based on 30 years of specialized experience. Because we only sell crusher technology and haven't branched out into other tools, we've become experts in our field rather than generalists. Working with our 20-person tech team and top-tier industry partners gives you access to tried-and-true solutions that have been improved upon over many years. We know how hard it is for recycling centers and factories, which is why we're committed to strong construction, high-quality work, and quick support that keeps your business going smoothly. Our line of customizable crushers can handle your unique needs, whether you're working with used bottles, injection molding waste, or complex mixed streams. Contact our team at xingbiaocrusher@xingbiaocrusher.com to talk about your needs with experienced engineers who will give you honest advice based on your working reality, not just your sales goals.

References

1. Hopewell, J., Dvorak, R., & Kosior, E. (2009). Plastics Recycling: Challenges and Opportunities. Philosophical Transactions of the Royal Society B: Biological Sciences, 364(1526), 2115-2126.

2. Al-Salem, S. M., Lettieri, P., & Baeyens, J. (2009). Recycling and Recovery Routes of Plastic Solid Waste: A Review. Waste Management, 29(10), 2625-2643.

3. Eriksen, M. K., Christiansen, J. D., & Astrup, T. F. (2019). Material Flow Analysis and Life Cycle Assessment of Plastic Recycling Technologies. Journal of Industrial Ecology, 23(1), 156-168.

4. Ragaert, K., Delva, L., & Van Geem, K. (2017). Mechanical and Chemical Recycling of Solid Plastic Waste. Waste Management, 69, 24-58.

5. Awoyera, P. O., & Adesina, A. (2020). Plastic Wastes to Construction Products: Status, Limitations and Future Perspective. Case Studies in Construction Materials, 12, e00330.

6. Schyns, Z. O., & Shaver, M. P. (2021). Mechanical Recycling of Packaging Plastics: A Review. Macromolecular Rapid Communications, 42(3), 2000415.
